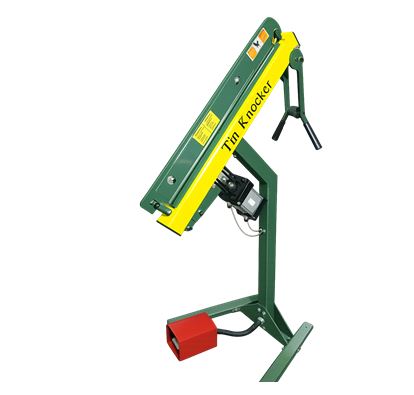

NEW TIN KNOCKER 1630 SQUARE TO ROUND BRAKE
Built for Fast, Accurate HVAC Square-to-Round Fabrication
Fast • Ergonomic • Air Operated • Shop Friendly
The Tin Knocker 1630 Square to Round Brake is designed specifically for HVAC shops that need to produce high-quality square-to-round duct fittings quickly, accurately and with less operator fatigue.
Instead of bending over a traditional hand brake, the operator can work in a more comfortable upright position while using standard shop air and a convenient foot pedal to form the material.
The machine can produce both offset and center-line square-to-round fittings, making it a versatile addition to any professional duct fabrication shop.
PERFECT FOR HVAC FABRICATION
Designed to make square-to-round duct fitting fabrication faster, easier and more consistent while reducing the physical strain associated with traditional manual brakes.
KEY FEATURES
- Air Operated: Runs on standard shop air at 90–120 PSI.
- Ergonomic Design: Allows the operator to work in a more comfortable position, reducing fatigue associated with bending over a traditional hand brake.
- Quick Pivot Release Handle: Allows fast blade adjustment to help speed up the forming process.
- Versatile Forming: Produces both offset and center-line square-to-round fittings.
- Foot Pedal Operation: Provides convenient hands-free activation during the bending cycle.
- Operator Safety: The forming blade is fully guarded with safety glass to help protect the operator's hands from pinch points.
- 16-Gauge Mild Steel Capacity
BENEFITS
- Increased Productivity: Produces quality square-to-round fittings in less time and with less effort than a traditional manual hand brake.
- Labor Savings: Helps reduce fabrication time, allowing your shop to produce more fittings with less operator effort.
- Improved Product Quality: Helps produce consistent, professional-looking fittings from job to job.
- Improved Operator Comfort: Reduces physical strain and creates a more comfortable working position.
- Optimized Shop Workflow: Speeds up a repetitive fabrication process and helps improve overall shop efficiency.
FAST & SIMPLE OPERATION
1. Insert Material
Position the sheet metal into the brake.
2. Clamp Material
Secure the material using the quick pivot release handle.
3. Form the Bend
Press the foot pedal to actuate the brake and form the material.
SPECIFICATIONS
| Model | Tin Knocker 1630 |
| Maximum Thickness | 16-Gauge Mild Steel |
| Air Requirement | 90–120 PSI |
| Approx. Dimensions | 33" x 71" x 38" |
| Approx. Shipping Weight | 162 lbs. |
IDEAL FOR
- HVAC Sheet Metal Shops
- Duct Fabrication Shops
- Mechanical Contractors
- Commercial HVAC Fabrication
- Production of Offset Square-to-Rounds
- Production of Center-Line Square-to-Rounds
WHY BUY FROM BATAVIA MACHINERY?
Batavia Machinery has been supplying the sheet metal, HVAC and fabrication industries since 2000.
We offer new and used sheet metal machinery, competitive pricing and knowledgeable assistance to help you select the right equipment for your application.
