NEW TK 1014B – 10' x 14 GA HYDRAULIC COMBO BRAKE
Hydraulic Box & Pan Brake + Straight Brake
Power • Strength • Repeatability

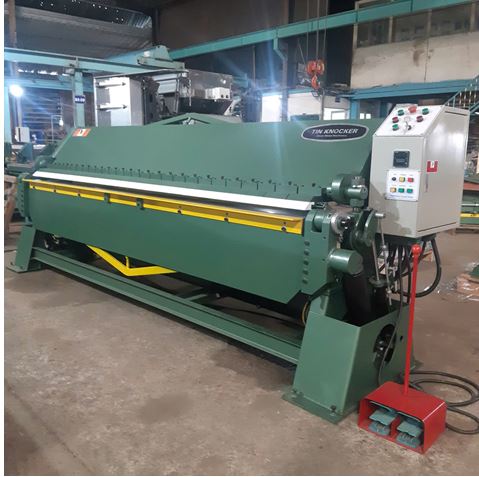

The Tin Knocker TK 1014B Hydraulic Combo Brake gives your shop the versatility of both a Box & Pan Brake and Straight Brake in one powerful hydraulic machine.
Designed to save time and increase productivity, the TK 1014B delivers the strength, control and repeatability needed for demanding sheet metal fabrication. With a rated capacity of 10 feet x 14-gauge mild steel, this heavy-duty hydraulic leaf brake is an excellent choice for manufacturing, HVAC, fabrication and maintenance operations.
DESCRIPTION
This model functions as either a finger brake or a straight brake. It features a standard box-and-pan design and includes an attachable straight nose bar.
With a bending capacity of 14-gauge mild steel up to 120 inches, it easily forms light-gauge sheet metal within its rated limits.
Built for both production and maintenance environments, this heavy-duty hydraulic brake is a reliable and valuable addition to virtually any professional metal-forming operation.
KEY FEATURES
- Functions as both a Box & Pan Brake and Straight Brake
- 120" maximum bending length
- 14-gauge mild steel capacity
- 6" box depth when using box-and-pan fingers
- Adjustable top leaf and open-height adjustment
- Two-position bending leaf angle bar
- Hardened tooling on both finger and straight nose bar

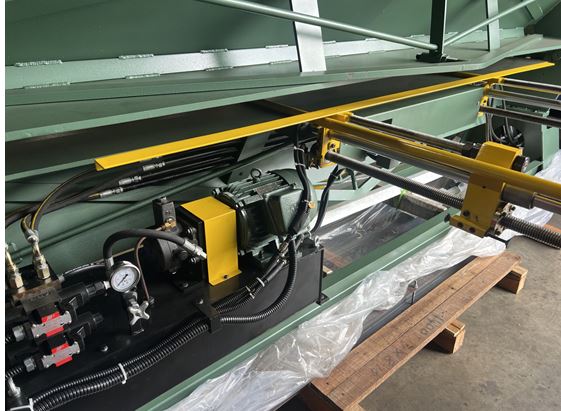

- Compact hydraulic power unit with direct pump
- Manifold-mounted directional valves
- Large hydraulic cylinder attached to a massive hinge assembly
- Adjustable clamp pressure with mechanical overlock and reference scale
STANDARD EQUIPMENT
- Removable Nose Bar
- Bolted Bottom Bar
- Compact Hydraulic Power Unit
- Angle Bar
- Insert Bar
- Oil Level Sight Gauge
- 28 Box & Pan Fingers
CONTROL PANEL FEATURES
- On/Off Key Selector Switch
- Bending Leaf Up/Down Pushbuttons
- Clamp/Unclamp Pushbuttons
- Motor Start Pushbutton
- Emergency Stop Pushbutton
- Automatic Cycle Pushbutton
ELECTRIC FOOT SWITCH
The electric foot switch clamps and unclamps the top leaf, giving the operator greater mobility while loading and unloading material.
BEND ANGLE DIAL ADJUSTMENT
Adjustable cam and degree scale actuate an electric limit switch for precise bend-angle control and excellent repeatability from part to part.
MATERIAL THICKNESS DIAL ADJUSTMENT
A convenient reference scale helps speed setup when adjusting clamping pressure for different material thicknesses.
MOTORIZED BACK GAUGE
Includes a standard motorized back gauge with GO TO positioning. The back gauge provides approximately 25-1/2" travel with rack-and-pinion drive, handwheel adjustment, inch/cm scales, sheet support rods and approximately 20 IPM crossbar travel speed.
SPECIFICATIONS
| Model | TK 1014B |
| Maximum Bending Length | 120" |
| Maximum Capacity | 14-Gauge Mild Steel |
| Finger Configuration | 6 – 3", 10 – 4", 10 – 5", 2 – 6" |
| Box Depth | 6" |
| Electrical | 3 HP, 3 Phase, 230 Volt, 15 Amp |
| Approx. Dimensions | 150" x 48" x 57" |
| Approx. Shipping Weight | 5,500 lbs. |
WHY BUY FROM BATAVIA MACHINERY?
Batavia Machinery has been supplying the sheet metal, HVAC and fabrication industries since 2000.
We offer new and used fabrication machinery, competitive pricing and knowledgeable assistance to help you select the right machine for your application.
New & Used Sheet Metal • HVAC • Fabrication Machinery
Specifications are subject to change without notice. Contact Batavia Machinery to confirm current specifications, voltage, availability, pricing and freight.
