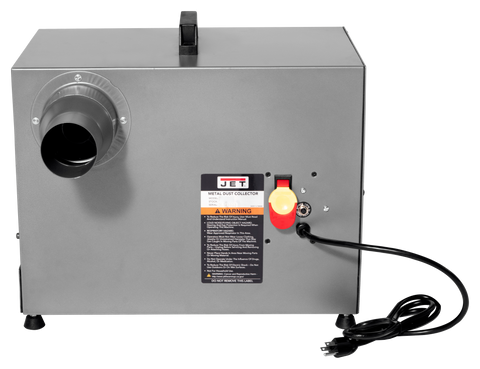

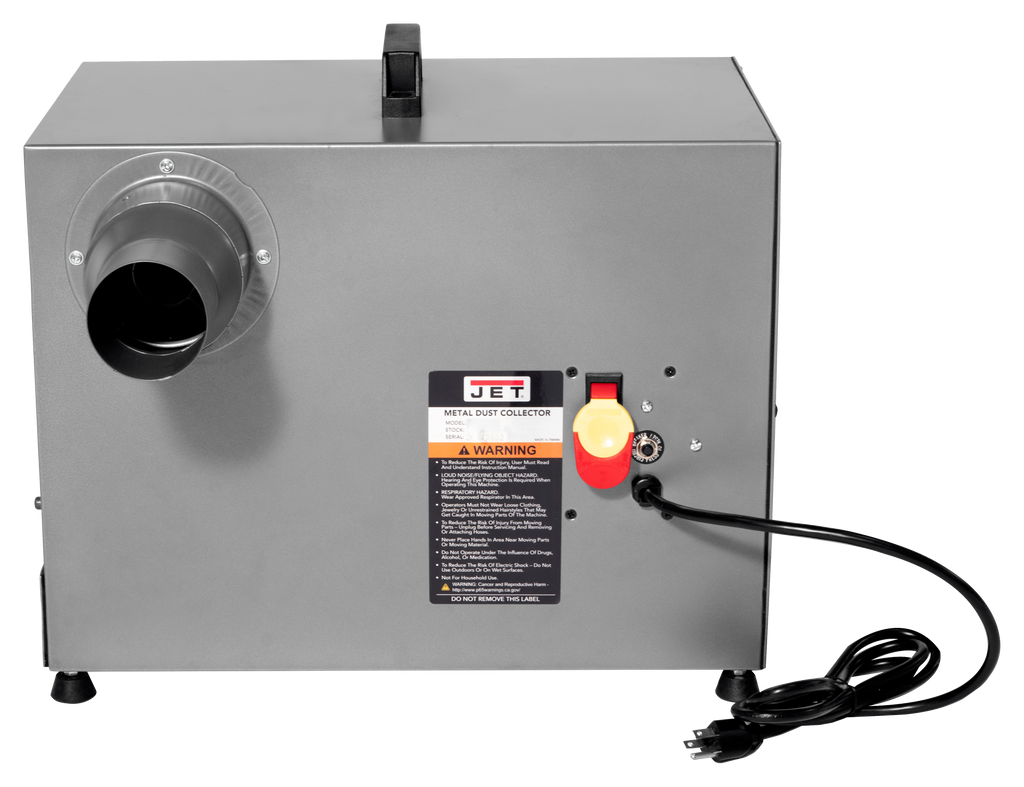

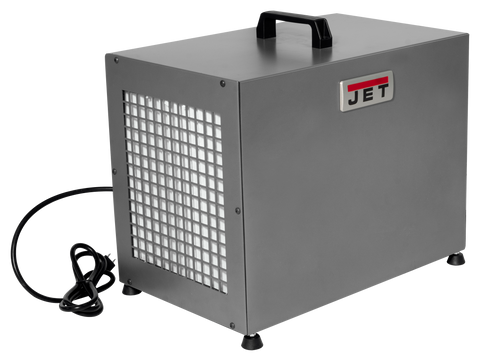

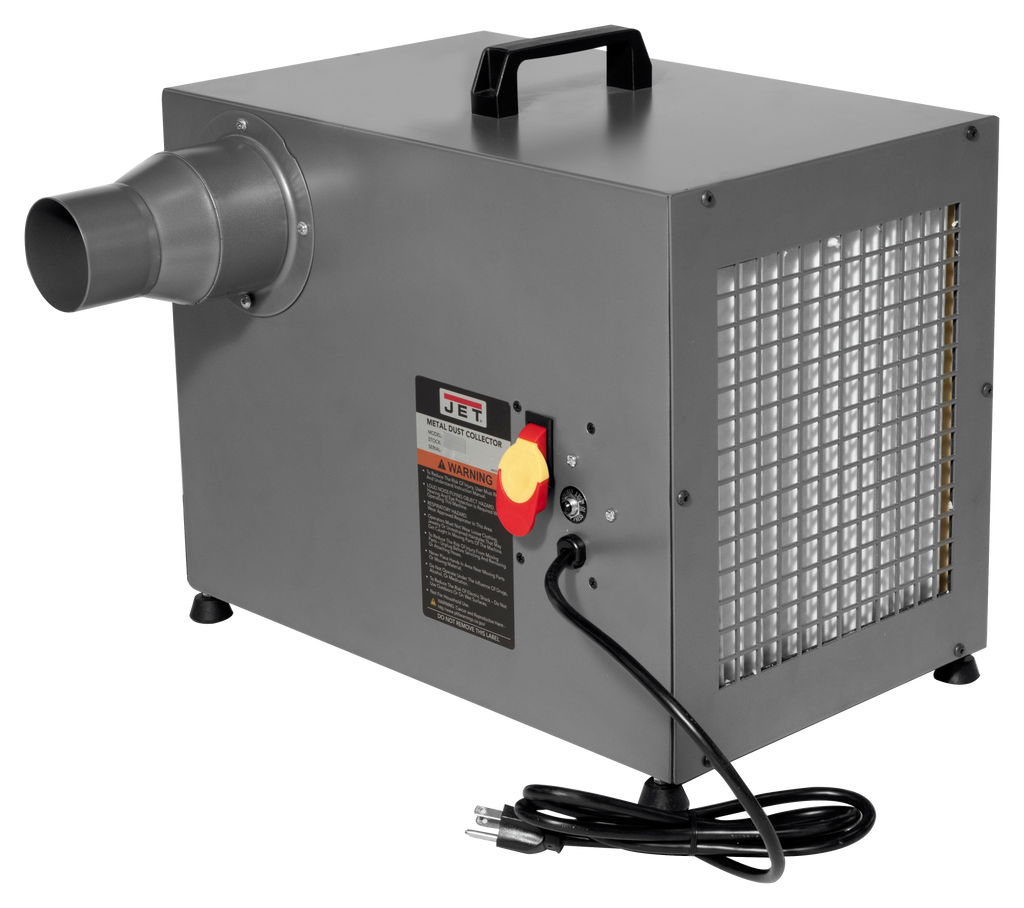

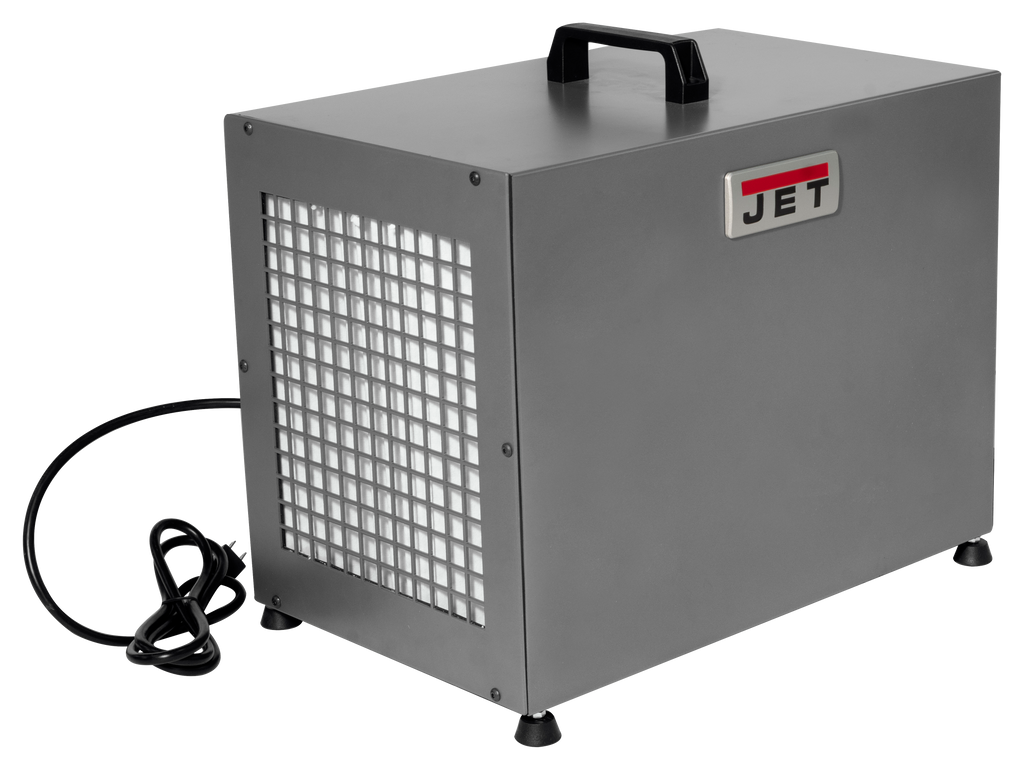

JET's new Bench Dust Collector is great for collecting abrasive dust from Belt & Disc finishing and grinding machines in your home or small shop. Chips and dust collect into a metal drawer that is easy to clean. The convenient optional casters allow for use throughout your shop. Enhance the health and safety levels in your shop with JET.
Quite, effective dust collection method

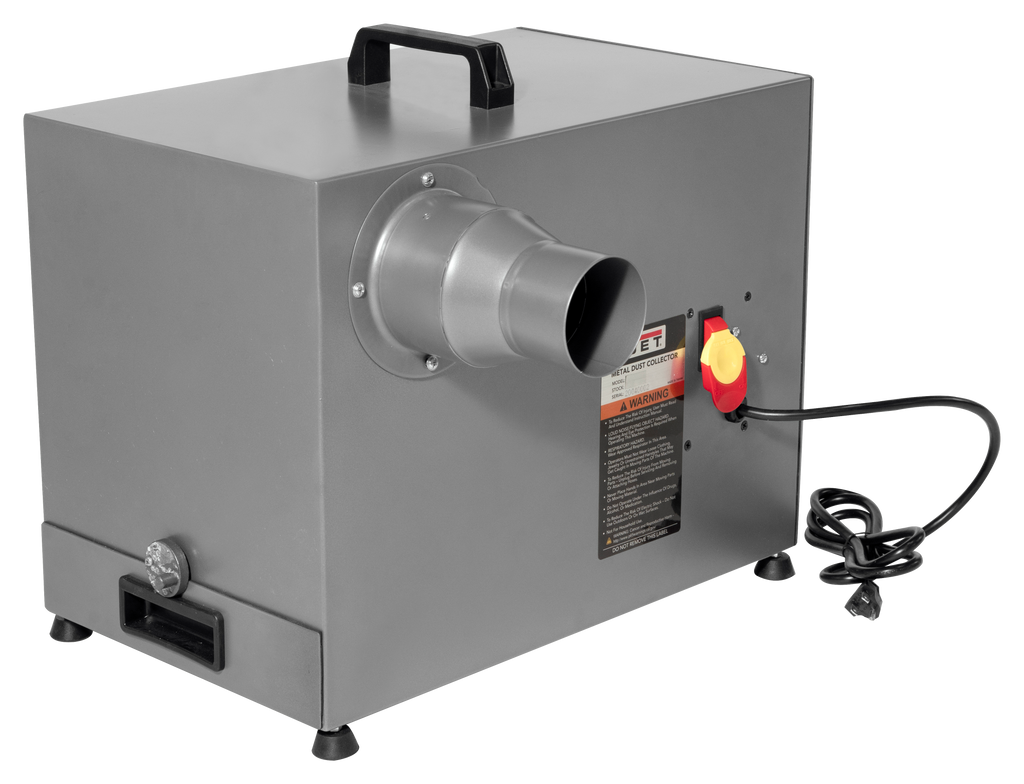

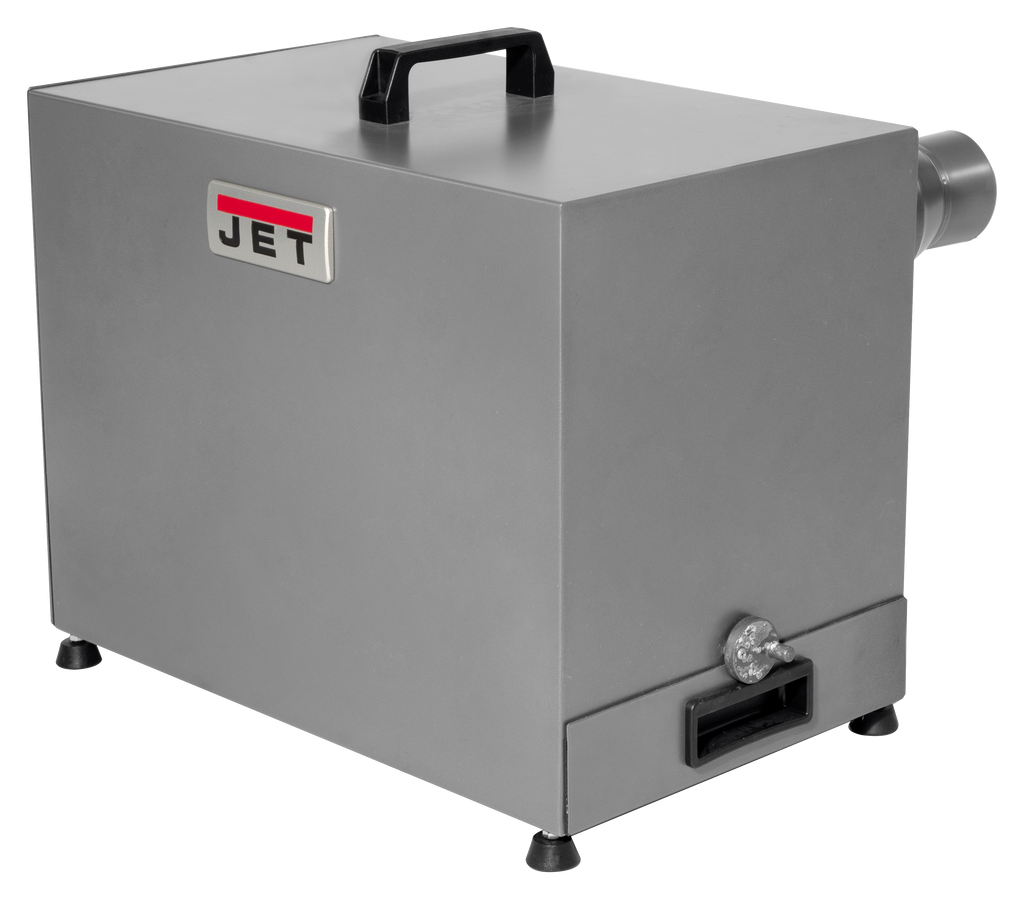

Simple and easy to clean-out chip & dust drawer
Easy to change exhaust filter
All steel construction
Non-sparking aluminum housing and fan blade
Portable on 4 casters and 2 handles for ease of movement
Quite, effective dust collection method
Specifications:
| Stock Number | JT9-414850 |
|---|---|
| Dust Port Size (In.) | 3 |
| Filter Size (W x L x D) (In.) | 11-25/32 x 10-15/32 x 1-3/16 In. |
| Maximum CFM | 490.0000 |
| Maximum Hose Velocity (SFPM) | 5610.0000 |
| Model Number | JDC-500B |
| Motor Amps | 3.5 |
| Motor Phase | Single |
| Motor Voltage (V.) | 115 |
| Overall Dimensions (L x W x H) (In.) | 30-5/8 x 20-7/8 x 29 |
| Prop 65 | Cancer and Reproductive Harm |
| Sound Rating (Db.) | 75 |
| Style (Type) | Dust Collector |
| Warranty | 2 Year |
| Gross Weight | 53.0 |
| Net Weight | 47.0 |
| Air Flow (CFM) (High) | 176 |
| Filter Efficiency | MERV 13 |
| Inner Filter Efficiency (MERV) | 13 |
| Inner Filter Material | Anti-spark/Fireproof |
| Electrics | 1/3HP, 115V, 1Ph |
| Filter Type | Anti-Spark / Fireproof |
| Noise Level @ 3ft (Decibel dB) High/Medium/Low | 75 |
| Number of Ports | 1 |
| Port Size (in.) (with Adaptor) | 3 |
