Standard Features:
FREE FREIGHT TO A BUSINESS ADDRESS MUST HAVE A WAY TO UNLOAD

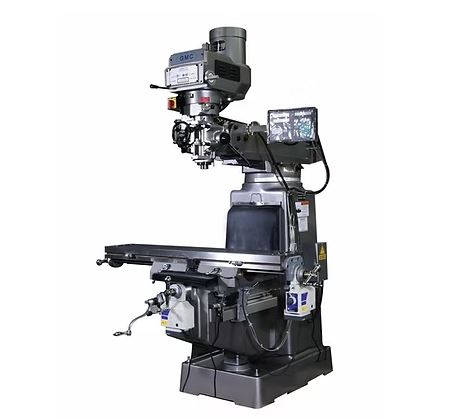

GMC Manual Knee Type Vertical Milling Machine Model # GMM-1050VT - Made in Taiwan
GMM-1050VT, 10”x50” table, variable speed, w/DRO & power feeds
Standard Features & Equipment:
- Made in Taiwan
- “Meehanite” casting
- Turcite “B” coating on X/Y ways like CNC mills
- ISO 9001 certified
- Mechanical variable spindle speeds from 60-4,200 rpm
- Heavy duty 3 HP AC spindle motor, 3 phase
- Heavy Duty high grade castings
- Hardened & ground ways, dovetail ways on X & Z , square ways on Y knee
- Hardened & ground table and Ground table T-slots
- Precision ground ACME Leadscrews
- Chromed ground quill ( spindle )
- Chromed dials
- Adjustable ways
- Hand brake on mill head

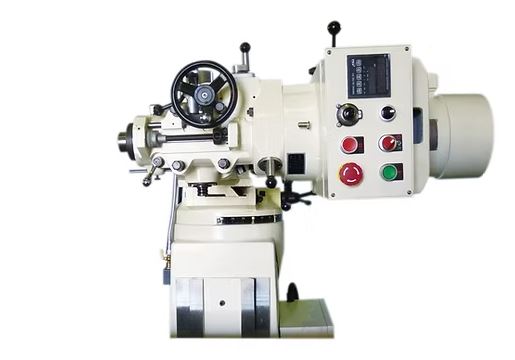

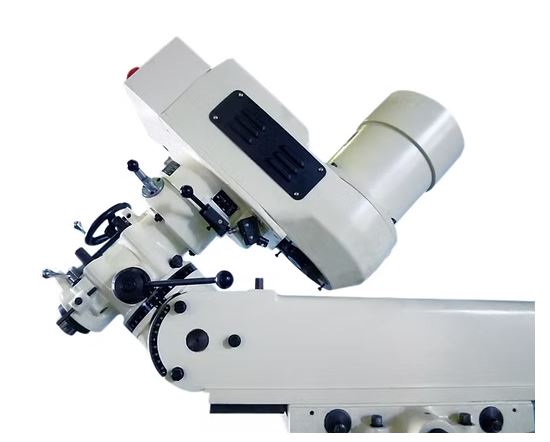

- Tilting & rotating head
- Manual or automatic quill feeds 0.0015” , 0.003”, 0.006” per spindle revolution
- One shot lube system
- front and rear rubber chip guards, and (1) manual draw bar
- Tool box kit and leveling pads
- Power source 220V OR 440V , 3 phase
- One year industrial warranty for parts
|
Specifications |
|
GMM-1050VT |
|
Table Size Table Load Capacity |
|
10” x 50” 727 LBS |
|
X Axis Travel X travel with power feed Y Axis Travel Z Axis Travel Max. distance spindle to table Max. distance spindle to column Min.distance spindle to column |
|
33” 28-3/4” 12-1/2” with power feed 16” 1-11/16”-17-5/8” 17-1/4” 8-1/4” |
|
Spindle Taper Type |
|
R8
|
|
AC Spindle Motor , |
|
3 HP, 220V/440V/3phase |
|
Variable spindle speeds |
60-4,200 rpm |
|
|
Quill ( Spindle ) diameter |
|
3 3/8” |
|
Quill ( Spindle ) travel |
|
5” |
|
Ram travel |
17” |
|
|
Table T-slot size |
|
5/8” x 3 slots |
|
Head Swivel, right to left Head tilting |
90 degree 45 degree |
|
|
Machine weight, approx LBS Machine dimensions , inch |
|
2,830 LBS 66x63x87” |
Standard Equipment:
- 2 axis CARMAR DRO installed on X & Y
- Table power feeds X and Y installed
- One shot lube
- Draw bar
- Rubber way covers
- Tool box
Optional Equipment: - Call for pricing 877-528-2809
- Coolant system
- Base coolant/chip drop pan# COOL-PAN
- 6” angle lock vise with swivel base, part# 900-0021.
- 52 pcs clamping kit # # 900-0001, ½”-13NC stud, 5/8” T-slot
- 11 pcs R8 collets set # 900-0007, 1/8” – 7/8”
- Rotary phase converter,7HP,USA, for single phase conversion
- Mill package # 3, incl 6” vise # 3900-2103, collet set # 3900-0007, Clamping Kit# 3900-0001, 20pc Titanium end mill set # 8000-0020,29pc Titanium drill bit set # 5000-0001
Important Notice:
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.
Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
