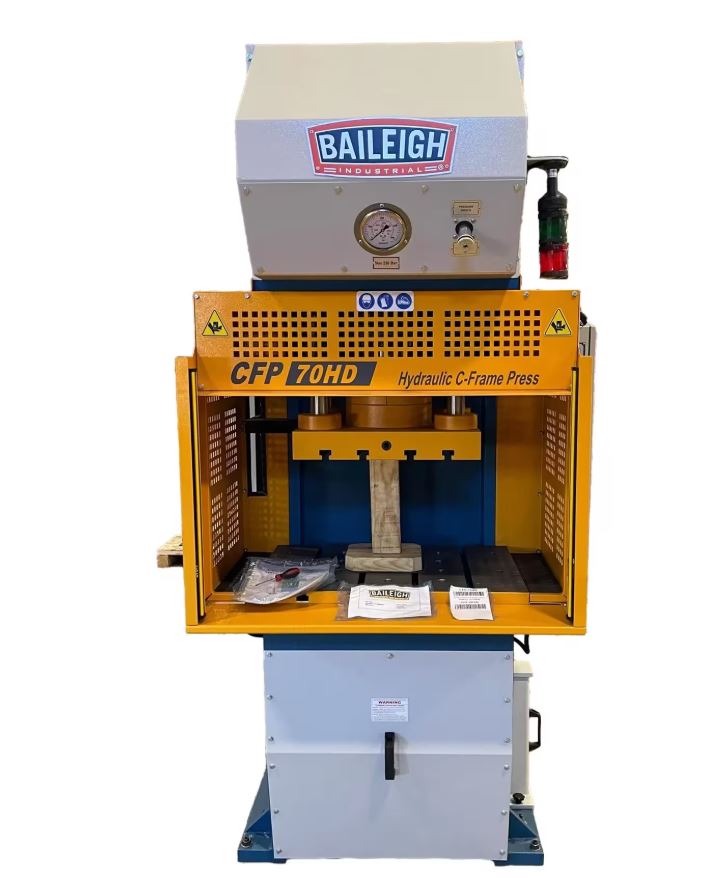

Baileigh C-Frame Press CFP-70
- 70 tons
- Open Design C-frame press
- Perfect for pressing or straightening
- Fully welded construction
- Hydraulically operated

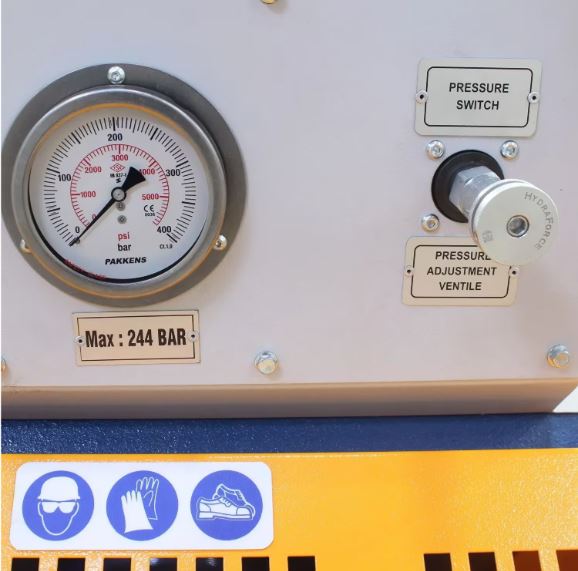

- Adjustable slide pressure
- Two speed pressing

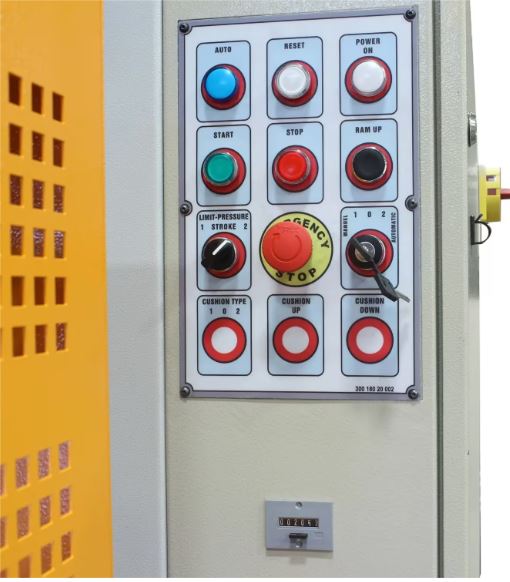

- Separate control pedestal
- 480V 3-phase
Down Force |
70 tons |
Return Force |
8 tons |
Bolster Size |
28.3" x 23.6" |
Shank Hole |
5.9" |
Slide Size |
24.4" x 18.1" |
Motor |
7.25 hp |
Throat Depth |
12.5" |
Max. Opening Height |
39.3" |
Idle Speed |
5.1" per sec. |
Pressing Speed |
.23" - .55" per sec. |
Table Height |
29.5" |
Power |
480V / 3-Phase |
Shipping Weight |
9,900 lbs. |
Shipping Dimensions |
50" x 57" x 120" |
