Baileigh Bench Lathe - PL-1022VS

  • Sale
  • Regular price $4,139.00
Shipping calculated at checkout.

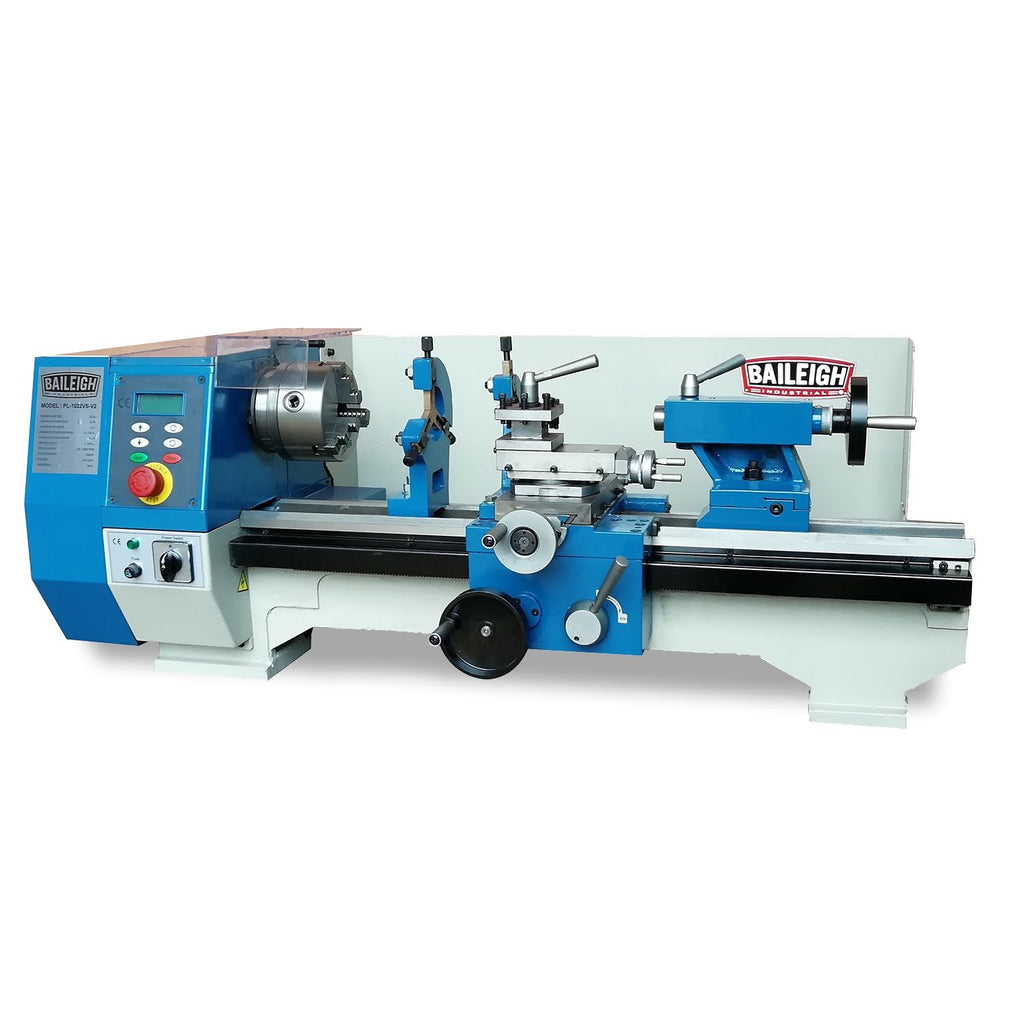

Baileigh Industrial’s PL-1022VS variable speed bench top lathe was developed from the MLD-1030. The PL-1022VS lathe features adjustable RPM from 50-2000 and includes a digital read out for accurate cutting speed. The PL-1022VS also features a powerful 110V 1HP motor that allows you to operate anywhere there is a standard outlet. Steady rest, follow rest, three jaw chuck, and four jaw chuck are just a few of the options that come standard on this bench top lathe.

Built for years of use, the PL-1022VS has ground and hardened ways. All components on this bench top lathe are of the highest quality.

In stock and ready to ship the PL-1022VS lathe should be on any small machine shops list of “must haves”. For more information on any of the great Baileigh Industrial products, contact a knowledgeable Baileigh Industrial sales representative.

Chuck Diameter 4.92"
Tool Slide Travel 1.89"
Spindle Accuracy .001"
Range Of Metric Threads 0.4 - 3.4 mm
Spindle Bore 1"
Range Of Inch Threads 8 - 56 T,P.I.
Motor 1 hp
Taper Of Tailstock Quill MT 2
Swing Over Bed 9.75"
Power 110V
Shipping Weight 403 lbs.
Distance Between Centers 22"
Shipping Dimensions 46x22x23
