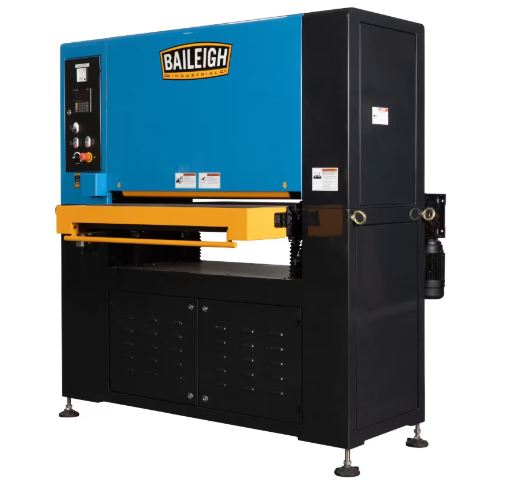

Baileigh WBS-37 37" Wide Belt Sander – 230V, 3 Phase
SKU: BA1-11225
Model: WBS-37
The Baileigh WBS-37 Wide Belt Sander is a heavy-duty 37-inch machine designed for professional metalworking and fabrication applications. With a powerful 10 HP motor, variable-speed conveyor, and a large 37" x 60" abrasive belt, the WBS-37 provides consistent sanding and finishing across wide workpieces.

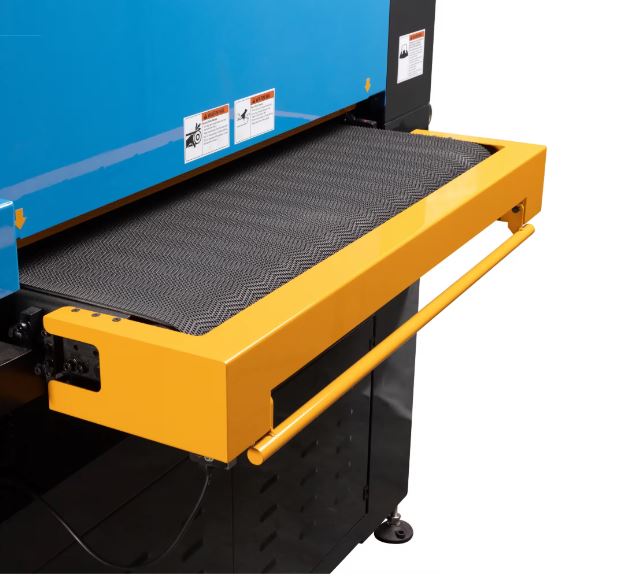

The variable-speed conveyor operates from 2 to 16 FPM, allowing the operator to adjust the feed rate to match the material and desired finish. The machine can accommodate material up to 37 inches wide and as thin as 1/32 inch.
Features
- Heavy-duty 10 HP sanding motor
- 37" maximum material width
- 37" x 60" abrasive belt
- Belt speed of 1,720 FPM
- Variable conveyor speed from 2–16 FPM
- Handles material as thin as 1/32"
- Minimum material length of 8"
- 19.3" infeed table
- 5" dust collection port
- 230V, three-phase power
- Heavy-duty construction for industrial applications
- 1-year warranty
Specifications
| SKU | BA1-11225 |
| Model Number | WBS-37 |
| Abrasive Type | Belt |
| Belt Size | 37" x 60" |
| Belt Speed | 1,720 FPM |
| Maximum Material Width | 37" |
| Minimum Material Length | 8" |
| Minimum Material Thickness | 1/32" |
| Conveyor Speed | 2–16 FPM Variable Speed |
| Conveyor Motor | 1/4 HP |
| Conveyor Gear Box Ratio | 1/100 |
| Motor HP | 10 HP |
| Motor Voltage | 230V |
| Motor Phase | Three Phase |
| Motor Amps | 25 |
| Number of Belt Speeds | 1 |
| Infeed Table Length | 19.3" |
| Dust Port Outside Diameter | 5" |
| Assembled Dimensions | 65.9" x 52.4" x 73.8" |
| Net Weight | 1,587 lbs. |
| Gross Weight | 1,923 lbs. |
| UPC | 019907003175 |
| Warranty | 1 Year |
| Product Type | Machines |
Applications
The Baileigh WBS-37 is an excellent choice for fabrication shops and metalworking facilities requiring a wide-format sanding and finishing solution. Its 37-inch capacity makes it ideal for processing larger flat workpieces while maintaining a consistent surface finish.
