Demo CHICAGO 40 Ton x 5' Hydraulic Press Brake - Floor Model

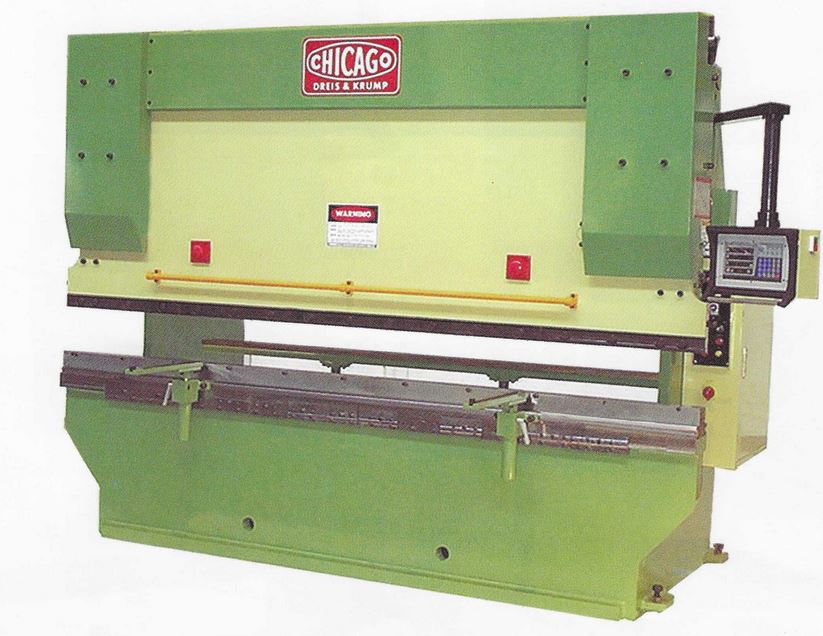

Heavy-duty hydraulic press brake featuring a 40-ton capacity, 5-foot overall bed and ram length, NC back gauge, and 320TS touchscreen numeric control. Designed for accurate forming, repeatability, and easy setup for both single-form and multi-step bending applications.

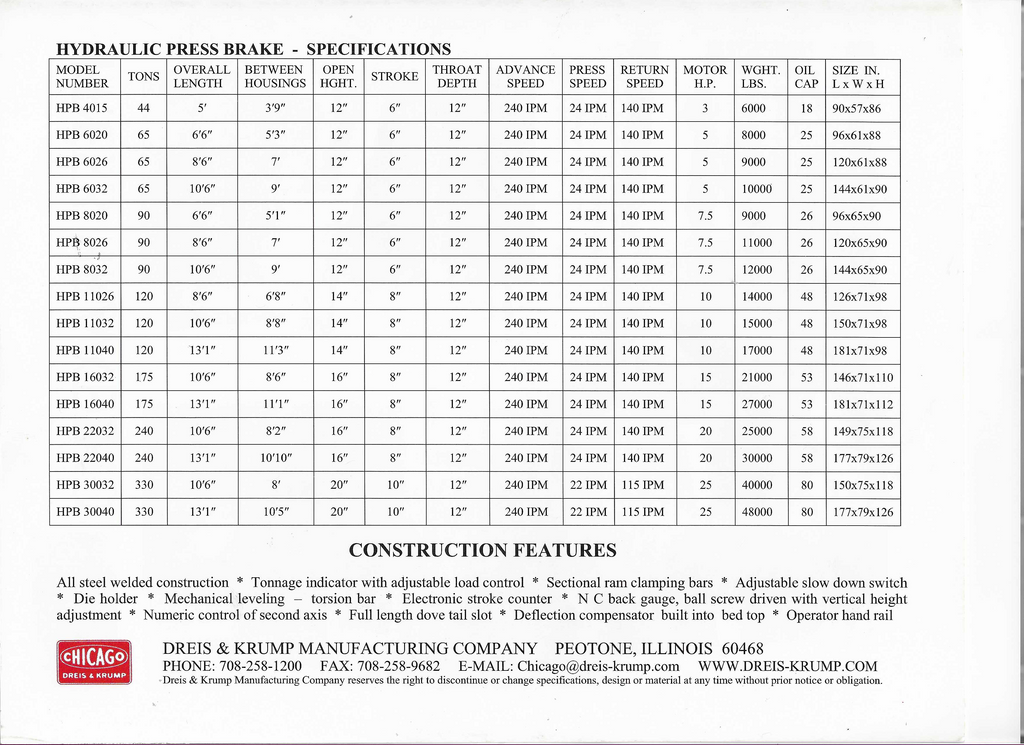

Specifications
| Capacity | 40 Tons |
| Bending Capacity - Mild Steel | 4' x 10 Gauge |
| Overall Bed & Ram Length | 5' |
| Distance Between Housings | 3' 9" |
| Throat Depth | 12" |
| Stroke | 6" |
| Open Height - Bed to Ram | 12" |
| Advance Speed | 240 IPM |
| Pressing Speed | 24 IPM |
| Return Speed | 140 IPM |
| Back Gauge Range | 24" |
| Main Motor | 3 HP |
| Approximate Weight | 6,000 lbs. |
Standard Equipment
- All-steel welded construction.
- Deep-section bed and ram manufactured from solid one-piece rolled steel plate for lateral rigidity and minimum deflection under full load.
- Self-contained hydraulic unit mounted overhead between the side housings.
- Hydraulic pump and unitized hydraulic manifold.
- Suction-line oil filtering system.
- Tonnage indicator with adjustable load control.
- Die holder.
- Alloy-steel hardened and ground piston rods designed to reduce packing wear.

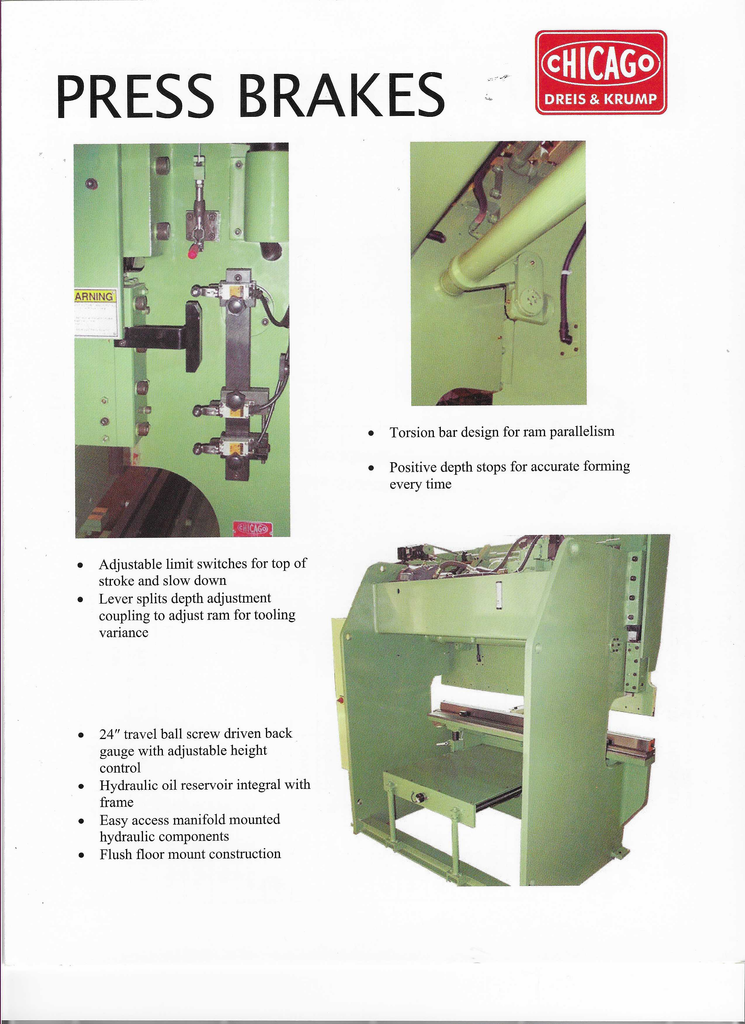

- Mechanical leveling system.
- Torsion bar keeps bed and ram parallel throughout the stroke.

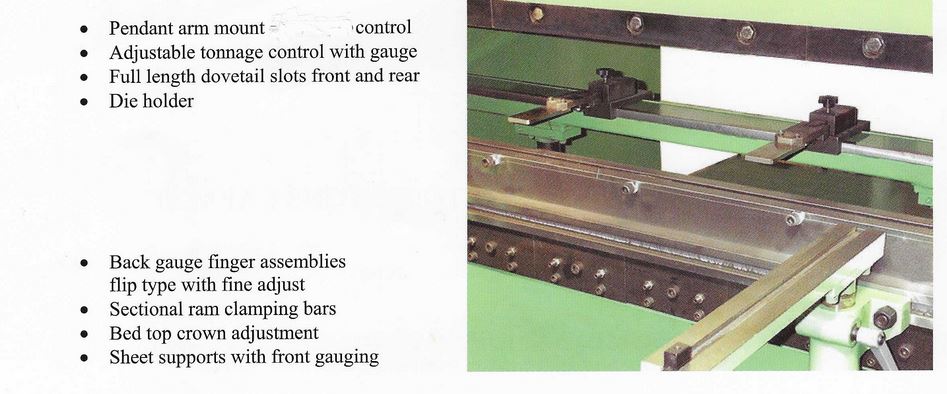

- Sectional ram clamping bars.
- Operator hand rail.
- Adjustable deflection compensator built into the bed top.
- Full-length dovetail slot in bed top, front and rear.
- Adjustable slow-down switch.
- Adjustable top-of-stroke switch.
- Adjustable bottom-of-stroke dwell.
- Electronic stroke counter.
- Dual-axis numeric controls.
NC Back Gauge
- Ball screw-driven NC back gauge.
- Vertical height adjustment.
- Adjustable finger extensions.
- Depth control adjustment nut in each cylinder.
- Independent cylinder adjustment helps ensure accurate air forming.
320TS Touchscreen Numeric Control

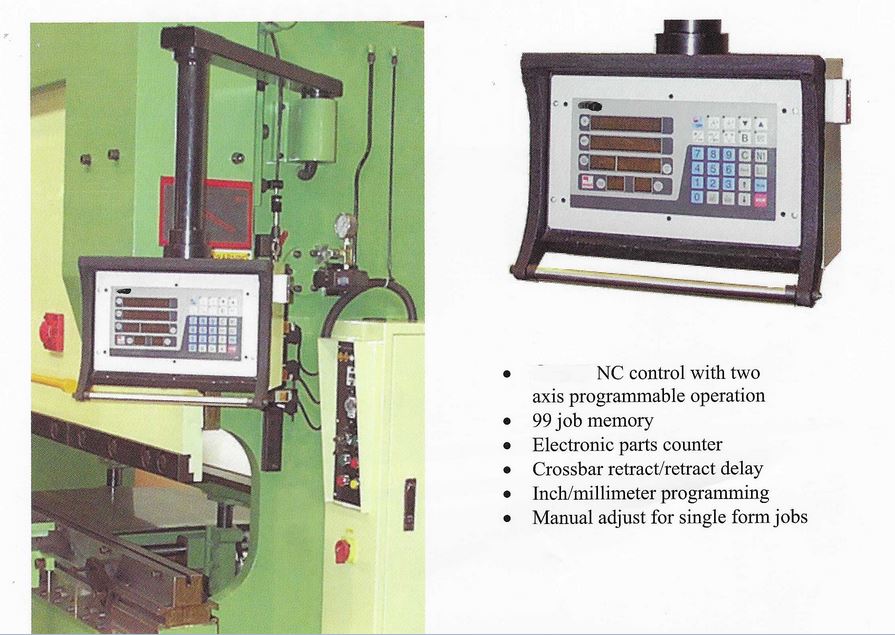

- 10-inch touchscreen control.
- Inch / millimeter readout.
- 99 programmable jobs.
- Quick setup for single-form jobs.
- Programmable operation for multi-angle and variable-flange sequence forming.
- Programmable ram depth.
- Programmable back gauge crossbar position.
- Back gauge retract function.
- Programmable retract delay.
- Parts counter.
Electrical Equipment
- 3 HP general-purpose open-type ball bearing motor.
- 220/440 Volt, 3 Phase, 60 Hz - please specify voltage.
- Magnetic non-reversing across-the-line starter.
- Overload protection.
- Low-voltage operating controls.
Machine Condition
Floor Model
Proposal Reference: Batavia Machinery 100226 HPB4015
Reference: 1923YR
Call for a freight Rate must ship by flat bed only - Est freight $6,000.00 for 2000 miles
