New Tin Knocker 10' X 16 Gauge Straight Brake
The Tin Knocker 1016 Leaf Brake is a heavy duty, manual sheet metal brake capable of bending up to 16 gauge sheet metal as wide as 10 feet. The 1016 leaf brakes is an industrial quality brake, designed and built to last.
Features Include:

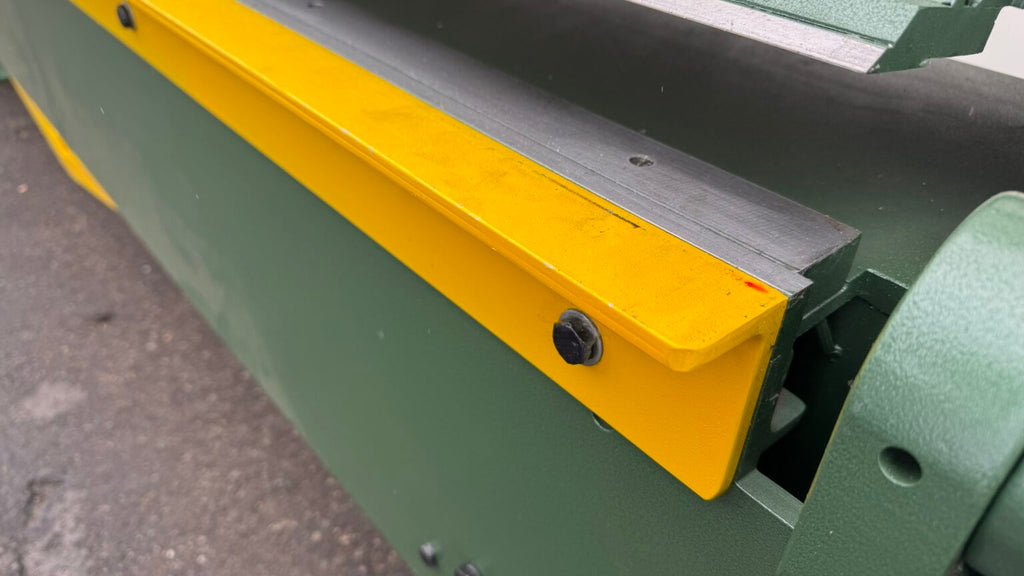

- A spring steel nose bar for durability and long-lasting service
- A heavy plate fabricated frame, paired with a full-length stiffening bar to bend smoothly and consistently to maximum material capacity
- A heavy-duty clamping mechanism, and bronze bushings at pivot points with zirks for lubrication
- Bushings and design of the machine make it easily serviceable and rebuildable
- A simple, adjustable angle-stop for accurate, repeatable bends up to 135 degrees
Specifications |
||
| Capacity: | 16 Ga | |
| Bend Length: | 10'1" | |
| Beam Lift: | 2 1/4" | |
| Box or Pan Depth: | 2" 3 sides | |
| Bolt On Apron Angle | Incl | |
| Counter Weight | Incl | |
| Dimensions: | 160"Lx50"Wx60"H | |
| Weight: | 3000 lbs | |
