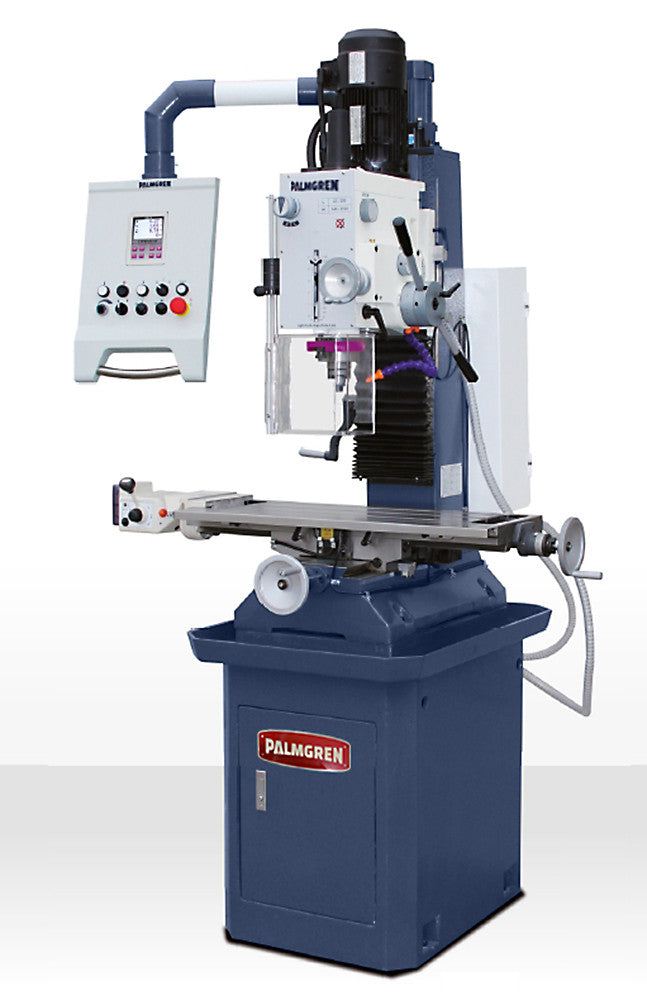

Palmgren 9680147 Variable-Speed Vertical Milling Machine with DRO & X-Axis Power Feed
Stand is included with machine
Product Overview
The Palmgren 9680147 Variable-Speed Vertical Milling Machine is a versatile and precision-built machine designed for tool rooms, maintenance shops, prototype work, and light production environments. Equipped with a Digital Readout (DRO) and X-Axis Power Feed, this mill delivers improved accuracy, increased productivity, and reduced operator fatigue.
Its gear-driven spindle and powerful 2 HP motor provide reliable performance across a wide range of machining applications, while the variable-speed control allows operators to easily match spindle speed to different materials and cutting operations.
Key Features
- Variable-speed gear-driven milling head
- Built-in Digital Readout (DRO) for enhanced accuracy
- X-Axis Power Feed for smoother and more consistent table movement
- Powerful 2 HP single-phase motor
- Precision R8 spindle taper
- Wide speed range from 75 to 2,275 RPM
- Heavy-duty cast construction for rigidity and stability
- Ideal for machining steel, aluminum, brass, plastics, and other materials
Specifications
| Specification | Details |
|---|---|
| Brand | Palmgren |
| Model Number | 9680147 |
| Drive Type | Gear Drive |
| Motor | 2 HP |
| Voltage | 230V AC |
| Phase | Single Phase |
| Spindle Speed Range | 75 – 2,275 RPM |
| Spindle Taper | R8 |
| Spindle Travel | 4.75" |
| Longitudinal Travel (X-Axis) | 22" |
| Cross Travel (Y-Axis) | 7.5" |
| Table Size | 31.5" x 9" |
| Table Capacity | 150 lbs |
| Spindle-to-Column Distance | 10" |
| Spindle-to-Table Distance | 2.375" |
| Drawbar Style | Manual |
| Digital Readout | Included |
| Power Feed | X-Axis Included |
| Country of Origin | China |
Why Choose a DRO & Power Feed?
The included Digital Readout (DRO) provides precise positioning information, helping operators machine parts more accurately while reducing setup time and material waste. The X-Axis Power Feed automatically moves the table, producing smoother finishes and improving consistency during longer cutting operations.
Ideal Applications
- Machine shops
- Tool and die work
- Maintenance departments
- Prototype manufacturing
- Educational and training facilities
- General metalworking operations
Built for precision, reliability, and ease of operation, the Palmgren 9680147 Vertical Milling Machine is an excellent choice for shops looking to increase machining accuracy and productivity.
