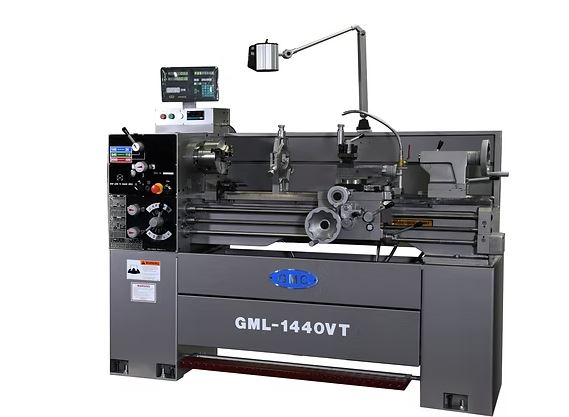

GML-1440VT, 14”x40”, variable speeds, 1-1/2” spindle bore, 3HP, 220V,3phase/1phase - With free
Machine Standard Features and Equipment:
- Made in Taiwan-100% made in Taiwan, by top manufacturer with very high level of quality
- 5 years industrial warranty for parts for all Taiwan lathes
- ISO 9001 certified
- Machine bed is made of high tensile cast iron FC25, Meehanite casting
- With free CARMAR DRO installed
- Full Geared-head precision Engine Lathe with foot brake
- Quick-change gearbox with fast and easy threading set up
- Inverter drive main motor 3HP, 220V, works on both power 3 phase/1 phase
- Spindle bore 1 1/2”
- Heavy Duty spindle D1-4
- Heavy Duty guideway width 7-1/2”
- Variable spindle speeds from 30-2,000 rpm
- 32 kinds of inch threads, and 32 kinds of metric threads
- Spindle is balanced, hardened and precision ground
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
Standard Equipment:
- Free CARMAR DRO installed
- 6” 3-jaw chuck with set reversible jaws
- 10” Face plate
- 4” steady rest with roller jaws
- 2” follow rest with roller jaws
- 4-position carriage stop
- Foot brake
- Coolant system
- LED work light
- Removable gap
- 4-way tools post
- Full length splash guard
- (1) dead center and (1) reducing sleeve
- Thread chasing dial
- Tool box with leveling pads
Optional:
- 5-C Hand lever type collet closer# 5C-1660AT, free install ……. call for pricing
- 33 pc 5C collet set, from 1/16 to 1-1/16” by 32ndth, # 900-0014.. call for pricing
- Taper turning attachment, installed……………………………….. call for pricing
- ALORIS type QC tool post set # 3900-5230, 6 pcs …................... call for pricing
- Live Center # 3900-5004 ................................................................ call for pricing
- 5pc Indexable carbide turning set # 2003-0004 ........................... call for pricing
- 3/8” carbide insert # 2003-0014 .................................................. call for pricing
- Lathe package 1 # GMCLSUP101, incl 5pc indexable carbide turning set # 2003-0004, ½ drill chuck # 3700-0102, Chuck arbor #3700-0157, and 29pc Titanium drill bit set #5000-0001T .................................... call for pricing
Specifications:
|
Specifications |
GML-1440VT |
|
Max. swing over bed |
14” |
|
Max. length of workpiece / Max. length of cutting |
40” / 34” |
|
Max. swing over cross slide |
8-5/8” |
|
Max. swing over gap |
20-1/4” |
|
Width of Bed |
7-1/2” |
|
Spindle bore |
1 ½” , D1-4 |
|
Taper of spindle center |
MT# 5 (MT5/MT3 with reducing sleeve) |
|
Spindle speeds, variable |
30-2,000 rpm variable |
|
Longitudinal feeds |
.0016-.00368IPR, 40 kinds |
|
Cross feeds |
.0008-.00122IPR, 40 kinds |
|
Inch threads |
4-56 TPI, 32 kinds |
|
Metric threads |
0.4-7.0 mm , 32 kinds |
|
Max. travel of top slide |
3-1/2” |
|
Max. travel of cross slide |
6-5/16” |
|
Longitudinal leadscrew |
Dia 1” / 4TPI |
|
Diameter of tailstock quill |
1-9/16” |
|
Max. travel of tailstock quill |
3-1/2” |
|
Taper of tailstock quill center |
M.T. # 3 |
|
Oil for headstock/ Gear box/Apron |
#30 weight machine oil, TEXACO regal R&O/100, 3 Gal. |
|
Main motor with 5HP inverter drive Amperage draw |
3HP, 220V, 1phase 3HP, 220V, 3 phase 10 Amp 10 Amp |
|
Coolant pump |
1/16HP, 220V, 1phase, water base coolant |
|
Machine weight, approx. |
1,930 LBS |
|
Overall dimensions, LxWxH |
73” x 35” x 59” |
|
Machine Shipping dimensions LWH |
75” x 30” x75” x 30” x 75” x 30” x 55” 77” x 30” x 61” |
