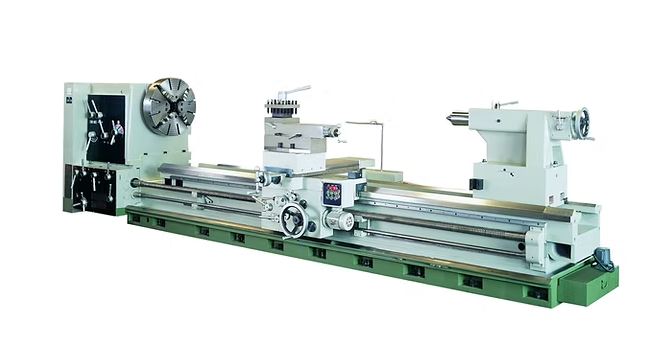

47”x240”, 12-1/8” bore, 30HP
Machine Standard Features and Equipment:
- Made in Taiwan
- ISO 9001 certified
- Super large spindle bore 12-1/8”(310mm)
- Rapid traverse on carriage longitudinal, cross slide and top slide
- Automatic feeding on carriage longitudinal, cross slide
- 2 speed Tailstock
- solid cast iron machine base
- Heavy Duty guideway width 27-1/4”
- Heavy Duty main motor 50 HP
- 12 spindle speeds from 4-420rpm
- Spindle is balanced, hardened and precision ground
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- One year industrial warranty for parts
Standard Equipment:
- 4-way tools post
- Work light
- Coolant system
- (1) dead center for tailstock
- Thread chasing dial
- Tool box
Optional:
- Large steady rest 3”to 10-1/2” # SR10-OCL ………. call for pricing
- Large steady rest 6” to 18-1/2” # SR-18-OCL……… call for pricing
- Large steady rest 10”to 23” # SR23-OCL …………. call for pricing
- Large steady rest 21”to 36” # SR36-OCL ……. call for pricing
- Follow rest, 4” – 10” # FR10-OCL …….. call for pricing
- Heavy duty 30” 4-jaw chuck # 4J30-OCL……. call for pricing
- Roller live center for tailstock MT6# LC-OCL……… call for pricing
- Taper turning attachment, free installation # TA-OC.. call for pricing
- Motorized top slide# MTS ………... call for pricing
- Quick change toolpost( fixed type) #QC ………. call for pricing
- Grinder ……………………. call for pricing
- Machine centers from 390” to 630” ………….. call for pricing
Specifications
OCL- 47160G
OCL- 47240G
OCL- 47360G
Max. swing over bed
47”
47”
47”
Distance between centers
160”
240”
360”
Max. swing over cross slide
33-1/2”(830mm)
33-1/2”(830mm)
33-1/2” ( 830mm)
Width of bed
27-1/4” (692mm)
Spindle bore
12-1/8” (310mm)
Spindle nose
A 2-20
Spindle speeds
4-420rpm , 12 steps
Max. weight of workpiece
9,000 LBS
Longitudinal auto feeds
0.004” – 0.055” IPR, 40 kinds
Cross slide auto feeds
0.004” – 0.022” IPR, 40 kinds
Inch threads
59 – 1 TPI, 35 kinds
Metric threads
0.5-18mm , 34 kinds
Max. travel of top slide
13-3/4”
Longitudinal rapid traverse
12’ / min.
Cross rapid traverse
6’ / min.
Top slide rapid traverse
3’ / min.
Diameter of tailstock quill
5”
Max. travel of tailstock quill
12”
Taper of tailstock quill center
MT 6
Main Motor
50 HP, 220V or 440V, 3 phase
Rapid traverse motor
1/2 HP, 220V or 440V, 3 phase
Lubrication pump motor
1/8 HP, 220V or 440V, 3 phase
Coolant pump motor
1/8 HP, 220V or 440V , 3 phase
Weight, approx. LBS
27,580LBS
31,580 LBS
33,580 LBS
Overall dimensions, LxWxH
264” x 79” x 82”
335” x 79” x 82”
465” x 79” x 82”
