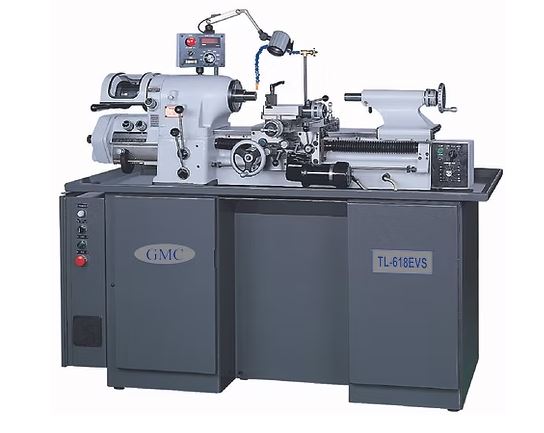

GMC TL-618EVS, 6” x 18”, inverter drives, 3HP, 220V, 3Phase / 1Phase
Machine Standard Features and Equipment:
- Made in Taiwan
- ISO 9001 certified
- Spindle run-out within 0.00005” ( 50 millionths inch )
- Turcite-B coating on guideways
- 3HP Yaskawa inverter drive spindle motor
- Infinity Yaskawa inverter drive spindle speeds from 0-4,000 rpm
- Easy to read digital readout on actual spindle rpm speeds
- Electric variable automatic feeding control on carriage and cross slide
- Quick change tool post slide for threading
- Inverter drive main motor 3HP, 220V, works on both power 3 phase/1 phase
- Dual range inch/metric quick change gear box for model # GMCTL-618EVS
- Digital control & inverter drive gearbox ( no change gear ) for #GMCTL-618E,
- easy cutting threads, variable inch / metric threads range
- Automatic thread length control w/ fine adjustable stops for accurate threading
- 36 kinds of inch threads, and 36 kinds of metric threads
- Spindle is balanced, hardened and precision ground
- High precision pre-loaded angular contact bearings for spindle
- Lubrication system for headstock, feed box, ways and leadscrews
- Power 220V, 3 phase ( 220V, 1 phase is optional )
- One year industrial warranty for parts
Standard Equipment:
- 5C collet closer installed * Quick change gear box
- 8” drive plate with drive dog * Dual inch / metric dials
- CARMAR DRO,installed * Coolant system
- Halogen work light * Tool box with tools
Optional:
- Taper turning attachment # TA-618EVS ……. call for pricing
- 33 pc round 5C collet set, from 1/16 to 1-1/16” by 32ndth, # 900-0014
- call for pricing
Specifications:
|
Specifications |
GMC TL-618EVS |
|
Max. swing over cross slide |
6” |
|
Distance between centers |
18” |
|
Max. swing over bed |
11” |
|
Swing over carriage |
9” |
|
Spindle capacity: |
|
|
with 3-jaw chuck |
6” |
|
With expanding collets |
3” |
|
With round 5C collets |
1-1/16” |
|
With hexagon 5C collets |
7/8” |
|
With Square 5C collets |
3/4” |
|
With step chucks |
1-1/16” to 6” |
|
Spindle nose diameter |
2.189” |
|
Spindle nose ID/OD |
5C / 4 degree taper |
|
Spindle thru hole Bar stock diameter with 5C closer |
1-1/4” 1-1/16” |
|
Variable spindle speeds |
0-4,000 rpm (with 5C) 0-3,000 rpm (with 6” 3-jaw chuck) |
|
Leadscrew diameter / pitch |
1” / 8TPI |
|
Carriage power feed speed range |
5/16” to 7” /min. |
|
Cross slide power feed range |
3/16” to 4” / min. |
|
Cross slide travel |
6” |
|
Quick change compound slide travel |
0.1” |
|
Compound slide travel |
3” |
|
Inch threads |
11-118 TPI , 36 kinds |
|
Metric threads |
0.275-2.7mm, 36 kinds |
|
Tailstock quill diameter |
1-3/8” |
|
Tailstock quill taper |
MT# 2 |
|
Tailstock quill travel |
3-3/4” |
|
Spindle motor ( inverter drive ) |
3HP, 220V, 3 phase or 1 phase |
|
DC feeding motor |
110V, 70 W |
|
Inverter drive for gear box |
--- |
|
Coolant pump |
1/8HP, 220V, 3 phase |
|
Machine weight , approx. |
2,530 LBS |
|
Machine dimensions, LxWxH |
73” x 30”x 67” |
