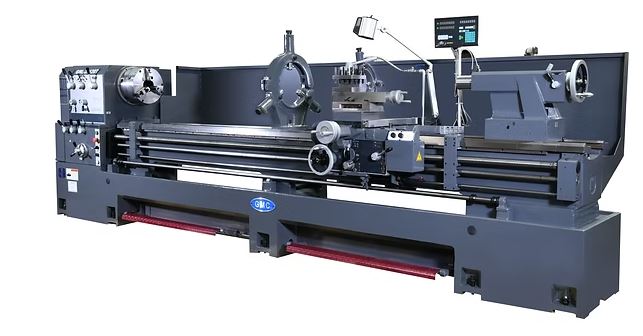

GMC 33"x160" - HEAVY DUTY PRECISION GAP BED LATHE 4-3/4” Spindle Bore - GML-33160T

GML-33160T, 33” x 160”, 4-3/4” bore, 15HP - Free Taper Attachment and CARMAR DRO installed!

Machine Standard Features and Equipment:

• Made in Taiwan-100% made in Taiwan, by top manufacturer with very high level of quality
• 5 years industrial warranty for parts for all Taiwan lathes
• One piece solid casting base, Meehanite high performance cast iron
• Machine bed is made of Meehanite casting – high performance cast iron
• ISO 9001 certified
• Large spindle bore 4-3/4” (120mm)
• Heavy Duty spindle D1-11
• Heavy Duty main motor 15HP
• 2-speed tailstock
• Spindle speeds from 10-1,000 rpm, 12 speeds
• 54 kinds of inch threads, and 54 kinds of metric threads
• Threading and feeding rate change without changing gears
• Spindle is balanced, hardened and precision ground
• Spindle is supported at 3-point by high precision bearings
• All gears and shafts are hardened and precision ground
• Guideways induction hardened and precision ground
• Automatic lubrication system in headstock and feed box


Standard Equipment:

• Free CARMAR DRO, installed
• Rapid traverse on carriage on Longitudinal way
• Automatic kick-out longitudinal carriage stop system
• 2-speed tailstock
• 12” 3-jaw chuck with top reversible jaws, direct mount
• 20” Face plate
• 12” steady rest with roller jaws
•  5” follow rest with roller jaws
• Removeable gap
• 4-way tools post
• Foot brake
• Halogen Work light and coolant system
• Full length Splash guard
• Dead center
• Thread chasing dial
• Reducing sleeve MT7/MT5 for spindle
• Tool box and leveling pads


Optional:

• ALORIS type QC tool post set # 3900-5160, 6 pcs …................... Call for pricing
• Live Center # 3900-5005…Call for pricing
• Taper attachment, installed ………Call for pricing
• Chuck   …………………Call for pricing
• 20” steady rest with roller jaws………Call for pricing


Specifications:

Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.

This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
