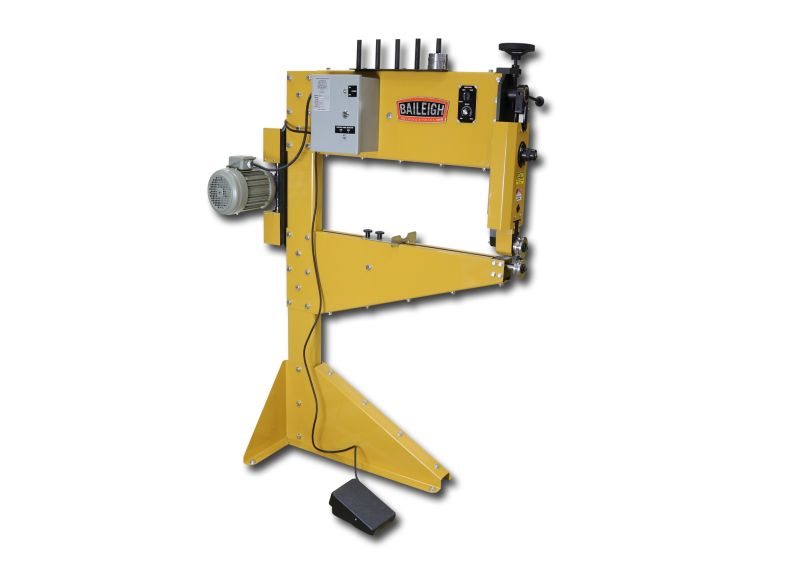

110V electric bead roller
16 gauge mild steel capacity
36" throat depth
Variable-speed foot pedal controls
-
Introducing our versatile bead roller with an open design, perfect for auto and airplane projects. With a 36" throat depth and foot pedal controls, it provides extra working area and leaves your hands free. Achieve precise and consistent results with adjustable depth, quick-release die, and compatibility with standard tooling. Our electric bead roller is built to last and comes with lifetime technical support. Fast shipping available for this must-have metalworking tool.
-
Maximum capacity of 16 gauge mild steel.
-
36” throat depth allows you to reach the center of 72” pieces.
-
Variable-speed pedal lets you press harder to go faster, or roll more slowly for detailed patterns.
-
You can also lock the rolls at a constant speed if you choose.
-
Integrated adjustable depth stop makes it simple to create and repeat perfectly straight beads.
-
Quick-release die maintains consistent forming depth, even if you open and close it.
You can begin or end a design in the middle of a panel without worrying if the depth is set correctly.
-
Adjust the forming depth with an easily accessible handwheel just above the working area.
Bottom die slides in or out. By changing the offset, you can create custom profiles from standard dies.
-
Includes ¼” round bead die set and .05" step roll set.
-
| Stock Number | BA9-BR36LT |
|---|---|
| Aluminum Capacity (Gauge) | 14.0000 |
| Input Power | 110 Volt |
| Max Thickness Mild Steel (Gauge) | 16.0000 |
| Mild Steel Capacity (Gauge) | 16.0000 |
| Model Number | BR-16E-36LT |
| Motor (HP) | 1/2 HP |
| Prop 65 | Cancer and Reproductive Harm |
| Roll Holder | No |
| Shipping Dimensions (L x W x H) (In.) | 60x44x72 |
| Throat Depth (In.) | 36" |
| Warranty | 1 Year |
| Gross Weight | 550.0 |
| Net weight | 550.0 |
