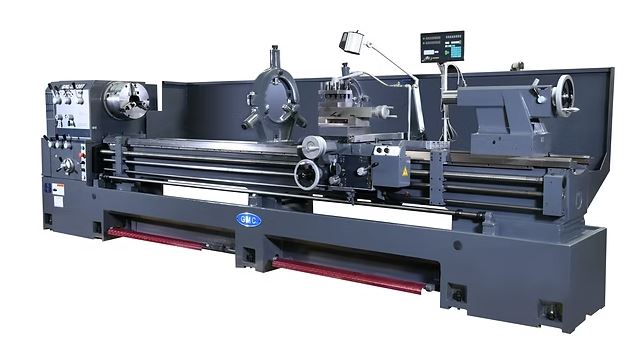

GMC 26" x 120" GMC HEAVY DUTY PRECISION GAP BED LATHES - GML-26120T
GML-26120T, 26” x 120”, 4-3/4” bore, 15HP
-
Description:
Made in Taiwan-100% made in Taiwan, by top manufacturer with very high level of quality
5 years industrial warranty for parts for all Taiwan lathes
One piece solid casting base, Meehanite high performance cast iron
Machine bed is made of Meehanite casting – high performance cast iron
ISO 9001 certified
Large spindle bore 4-3/4” (120mm)
Heavy Duty spindle D1-11
Heavy Duty main motor 15HP
16 spindle speeds from 10-1,000 rpm, 12 speeds
2-speed tailstock
54 kinds of inch threads, and 54 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
Specs:
Disclaimer:
Please note this machineis incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company,will automatically void the warranty.It is crucial to understand that any such actions are entirely the responsibility of the buyer.
This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
Specifications
GML-2680T
GML-26120 T GML-26160T
Max. swing over bed
26” 26” 26”
Max. length of workpiece
80”
129” 169”
Max. swing over cross slide
17-1/4” 17-1/4” 17-1/4”
Max. Swing in gap
35” 35” 35”
Width of Bed
15-3/4”
Effective length in gap to spindle
9”
Effective length in gap to chuck jaws
4-1/2”
Spindle bore
4-3/4” (120mm), D1-11
Taper of spindle center
MT# 7/MT5 with reducing sleeve
Spindle speeds
10-1,000 rpm / 12 steps
Longitudinal feeds
0.002-0.032 IPR, 35 kinds
Cross feeds
0.001-0.0094IPR, 35kinds
Inch threads
2-56 TPI, 44kinds
Metric threads
0.5-14mm , 24 kinds
Max. travel of top slide
8”
Max. travel of cross slide
13-1/2”
Leadscrew length X TPI
1-1/2” x 4 TPI
Diameter of tailstock quill
3-1/2”
Max. travel of tailstock quill
7-1/2”
Taper of tailstock quill center
M.T. # 5
Main motor
Amperage draw
15HP, 220V or 440V, 3 phase
55Amp on 220V / 30Amp on 440V
Rapid traverse motor
1HP, 220V or 440V, 3 phase
Coolant pump motor
1/8 HP, 220V, or 440V, 3 phase, 3 Gal coolant fluid
Machine Oil
#30 weight machine oil, 8 Gallons
Machine weight, approx. LBS
6,720 LBS
8,590 LBS 10,810 LBS
Overall dimensions, LxWxH, inch
Shipping dimensions, LxWxH, inch
137x50x73
142x44x77
186x50x73 219x50x73
191x44x77 232x44x77
Standard Equipment:
Free CARMAR DRO, installed
Rapid traverse on carriage on Longitudinal way
Automatic kick-out longitudinal carriage stop system
2-speed tailstock
12” 3-jaw chuck with top reversible jaws, direct mount
20” Face plate
12” steady rest with roller jaws
5” follow rest with roller jaws
Removable gap
4-way tools post
Foot brake
Halogen Work light and coolant system
Splash guard on carriage
Dead center
Thread chasing dial
Reducing sleeve MT7/MT5 for spindle
Tool box and leveling pads
Optional Equipment:
ALORIS type QC tool post set # 3900-5160, 6 pcs ... Call for pricing
Live Center # 3900-5005…………… Call for pricing
Taper attachment, installed …………… Call for pricing
Chuck …………………………. Call for pricing
20” steady rest with roller jaws…………… Call for pricing
