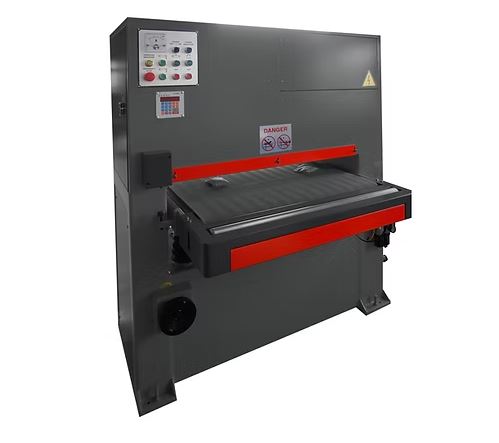

Dry Line Graining/Deburring/Finishing Machines
Standard Features:
- Motorized Table Lift, with digital readout
- Variable Speed Conveyor
- Conveyor Forward & Reverse
- Belt Safety Overtravel Switches
- Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to Re-adjust the tracking system when running extremely out of parallel belts
- 4-Jackscrew Table Support
- Double Infeed & Outfeed Pinch Rolls with protective guards
- Conveyor Belt Tracking System
- Safety System with Disc Brake. Air operated disc brakes to stop sanding head in 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device
- Table Height Digital Readout
- Load Meter indicates percentage of full motor loads
- Belt change door electrically interlocked for safety purpose
- Air tensioning of belt for accurate tensioning & compensation of belt stretch
- Quick release sanding head support for fast belt change
- Dust collection hood with 4” outlet is located adjacent to abrasive head in sanding area
- Emergency stops from almost any point
- Noise level below 82 dba
- Operation manual, control tags, danger signs, and warning labels in English on machine
- 208/230, 3-Phase
- One year Industrial Warranty for parts
- We strongly recommend to use good dust collector for our Finish Pro, otherwise, the warranty will be void.
NOTE:
- Prices are for 208-230 VOLTS
- Total amps 45 @ 230/3/60
- COMPRESSED AIR REQUIRED: 2 CFM @ 90 PSI
- Included: HDDP-FP40 Ducting package for FP-2560 & FP-4075
CAUTION: If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.
OPTIONAL: WET DUST COLLECTORS use a water filled tank through which all grinding dust is pulled by a motor driven impeller fan. Particles sink to the base of the tank where they can easily be removed by raking into a provided container. Normal tap water is used, there are not filter bags to be changed. Water level is automatically controlled when unit is connected to a water supply. All units are equipped with explosion relief door and sound silencer.
Specifications:
| Model # | FP-2560 | FP-4075 | FP-5285 |
| Max. Part Width | 24" | 40" | 52" |
| Abrasive Belt Size | 25" x 60" | 40" x 75" | 52" x 86" |
| Contact Roller Size | 8" Dia. | 8" Dia. | 10” Dia. |
| Passline Height | 31" - 37" | 31" - 37" | 31" - 37" |
| Max. Thickness Capacity | 6-1/8" | 6-1/8" | 6-1/8" |
| Conveyor Drive Speeds | 8-40 FPM | 8-40 FPM | 8-40 FPM |
| Infeed Conveyor Length | 20" | 20" | 20" |
| Dust Collector Capacity | 1,100 CFM | 1,800 CFM | 2,800 CFM |
| Main Motor | 10 HP, 230V, 3-Phase |
15 HP, 230V/460V, 3-Phase |
30 HP, 230V/460V, 3-Phase |
| Conveyor Motor | 1 HP, 230V, 3-Phase |
1.5 HP, 230V/460V, 3-Phase |
3 HP, 230V/460V, 3-Phase |
| Table Lifting Motor | 1 HP, 230V, 3-Phase |
1 HP, 230V/460V, 3-Phase |
3 HP, 230V/460V, 3-Phase |
| Net Weight, approx. | 2,950 LBS | 4,650 LBS | 6,650 LBS |
| Machine Dimensions, LxWxH | 55" x 63" x 69" | 76" x 88" x 81" | 89" x 98" x 93" |
| HDDP-2560 | GMC Heavy Duty Ducting Package - $850.00 |
| WDC-FP25 |
GMC Heavy Wet Duty Dust Collector System - $7,950.00 |
Optional Accessories for FP-2560:
- Model # WDC-FP25 - Wet Dust Collector, 1800CFM, 3HP, 220/440V, 3-Phase
- Heavy Duty Ducting Package # HDDP-2560
Optional Accessories for FP-4075:
- Model # WDC-FP40 - Wet Dust Collector, 1800CFM, 5HP, 220/440V, 3-Phase
- Heavy Duty Ducting Package # HDDP-4075
Optional Accessories for FP-5285:
- Model # WDC-FP52 - Wet Dust Collector, 2500CFM, 5HP, 220/440V, 3-Phase
- Heavy Duty Ducting Package # HDDP-5285
